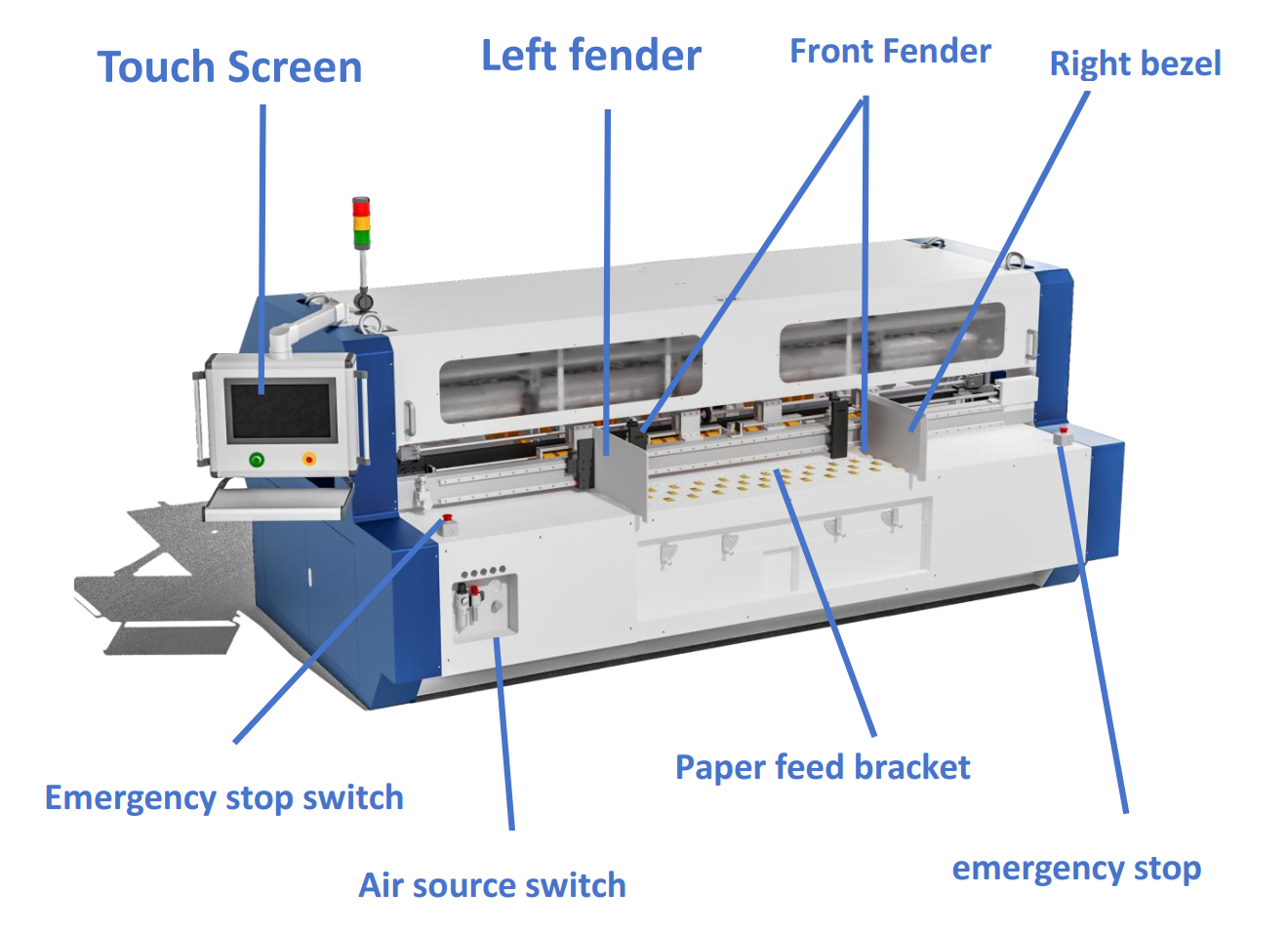

ZK-2512 Intelligent Carton Slotting Cutting Machine

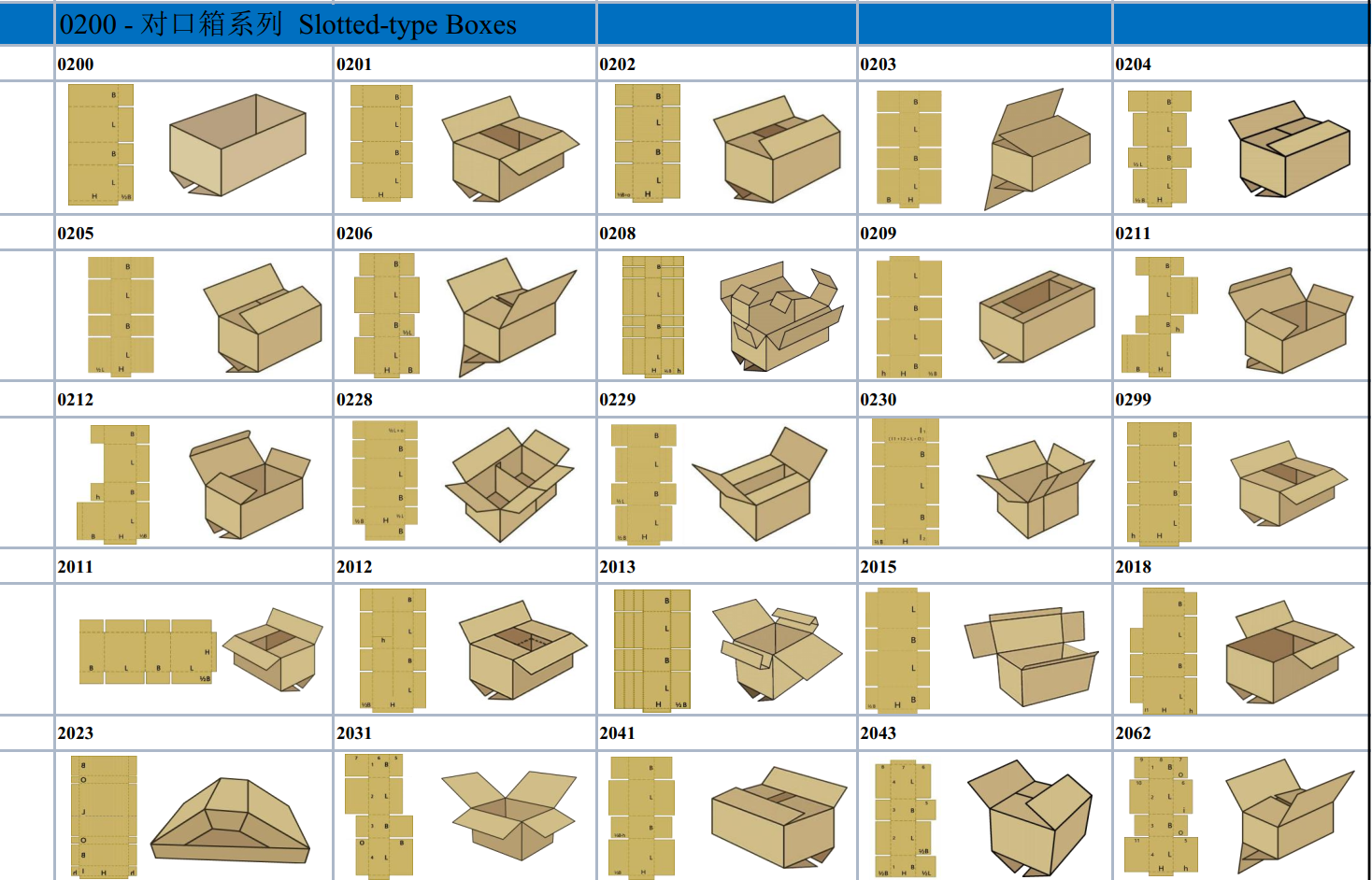

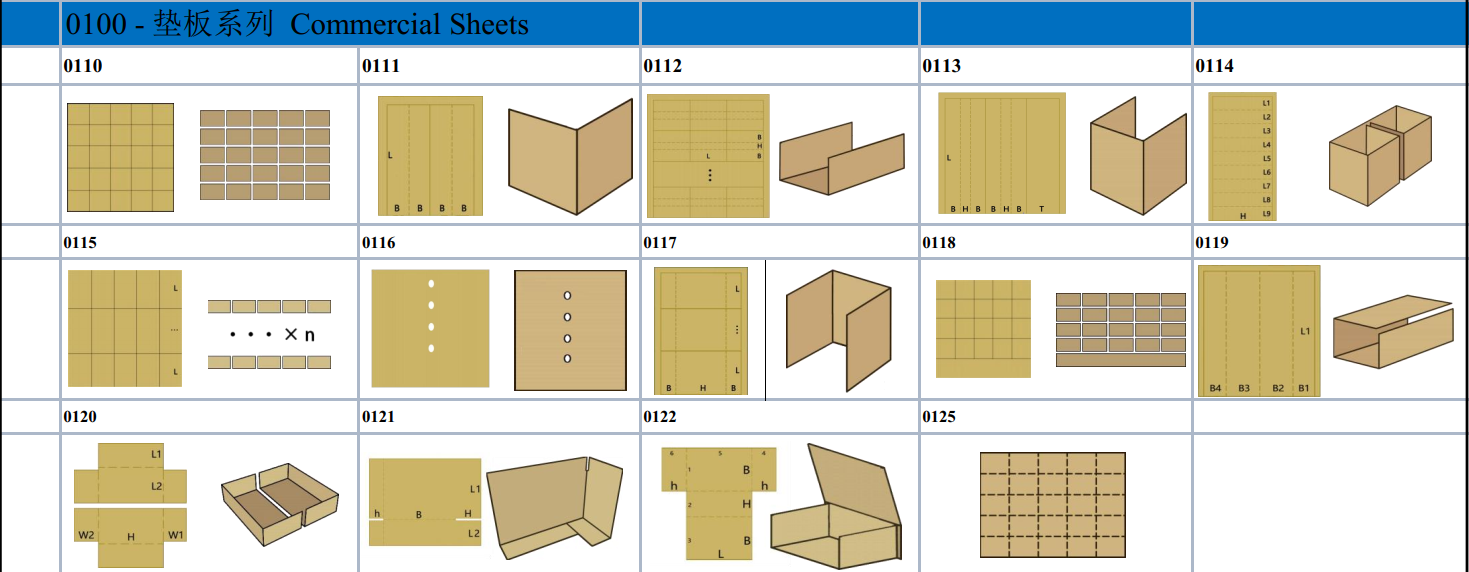

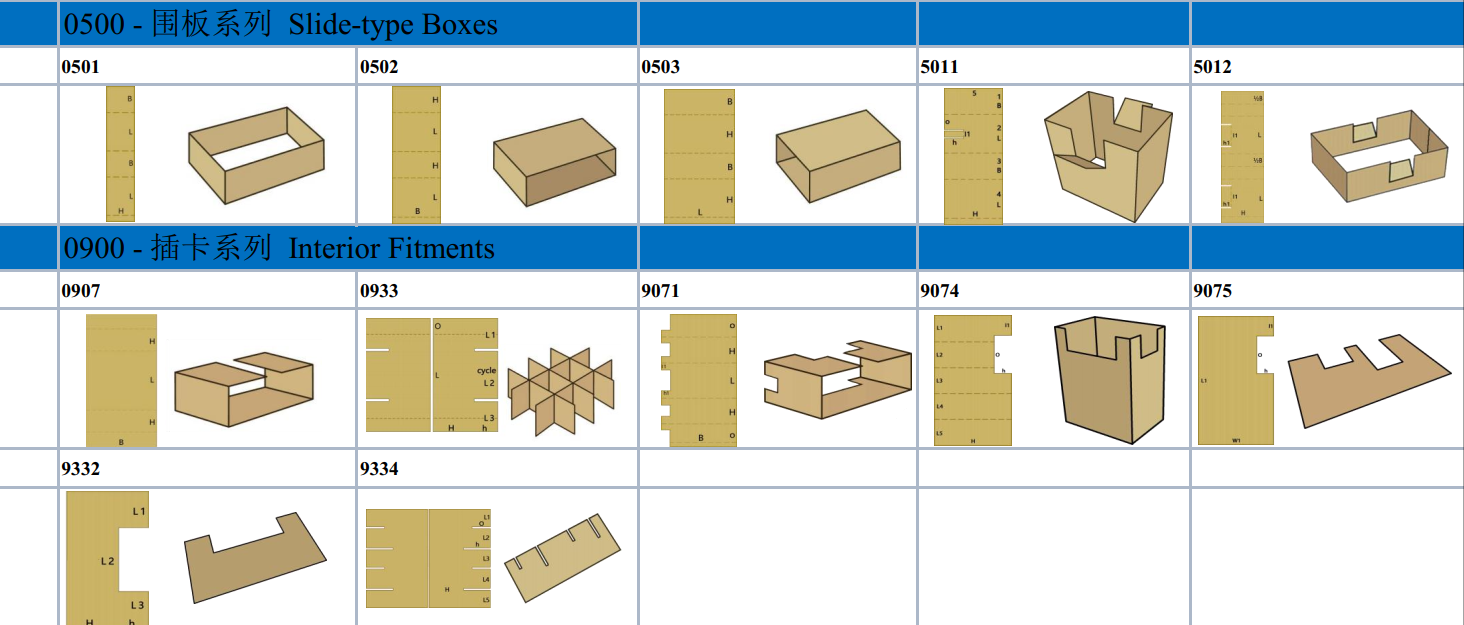

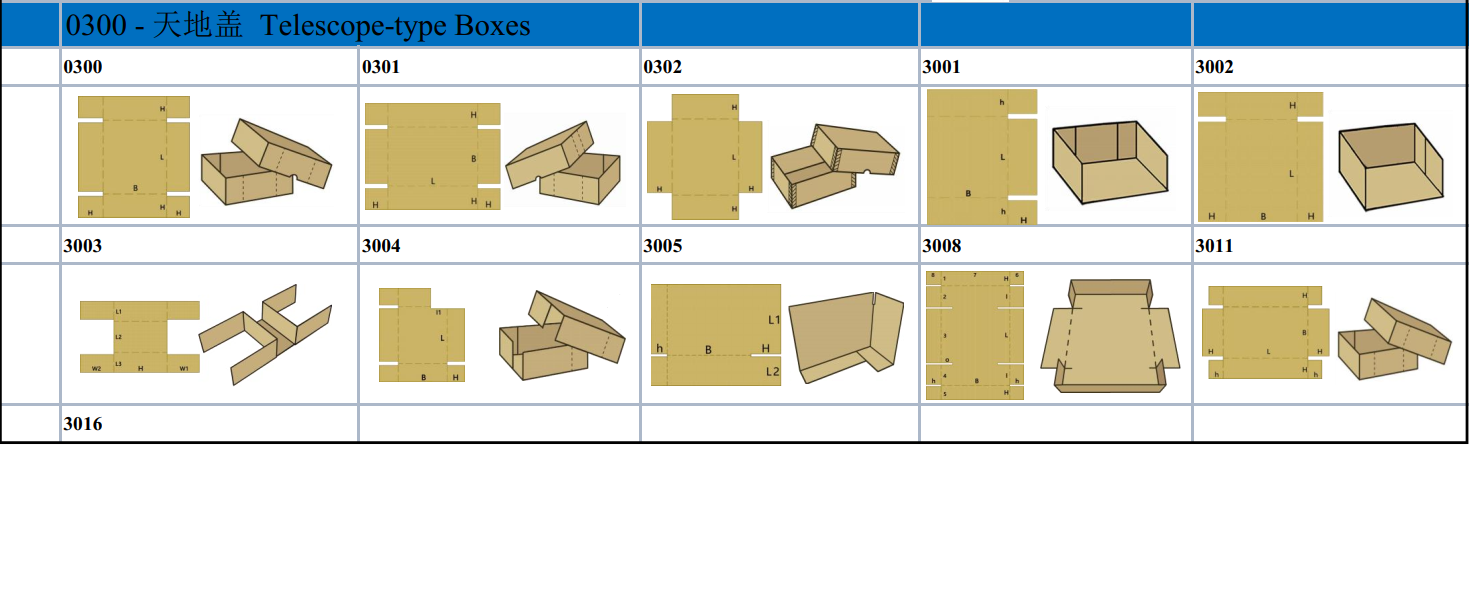

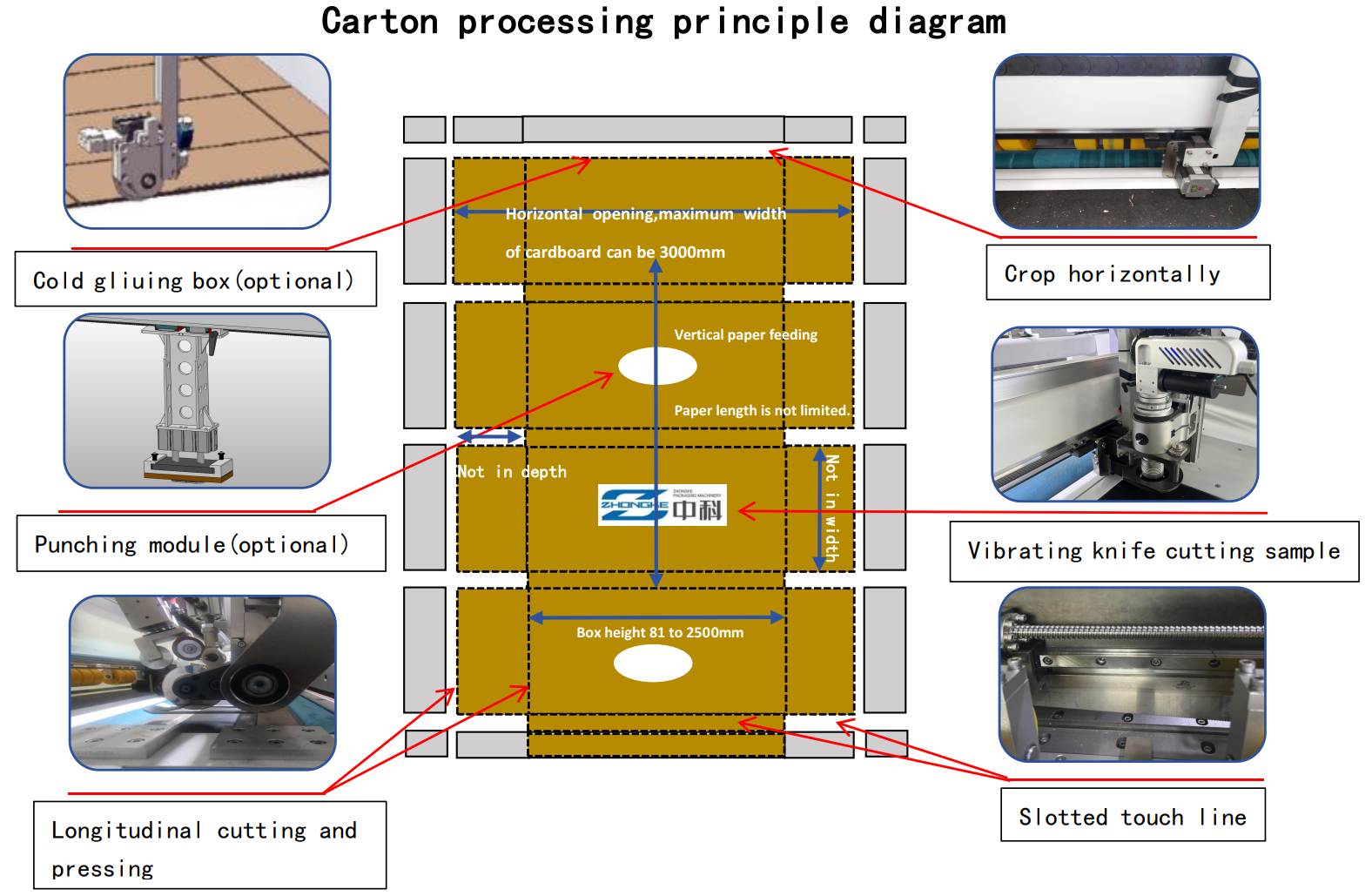

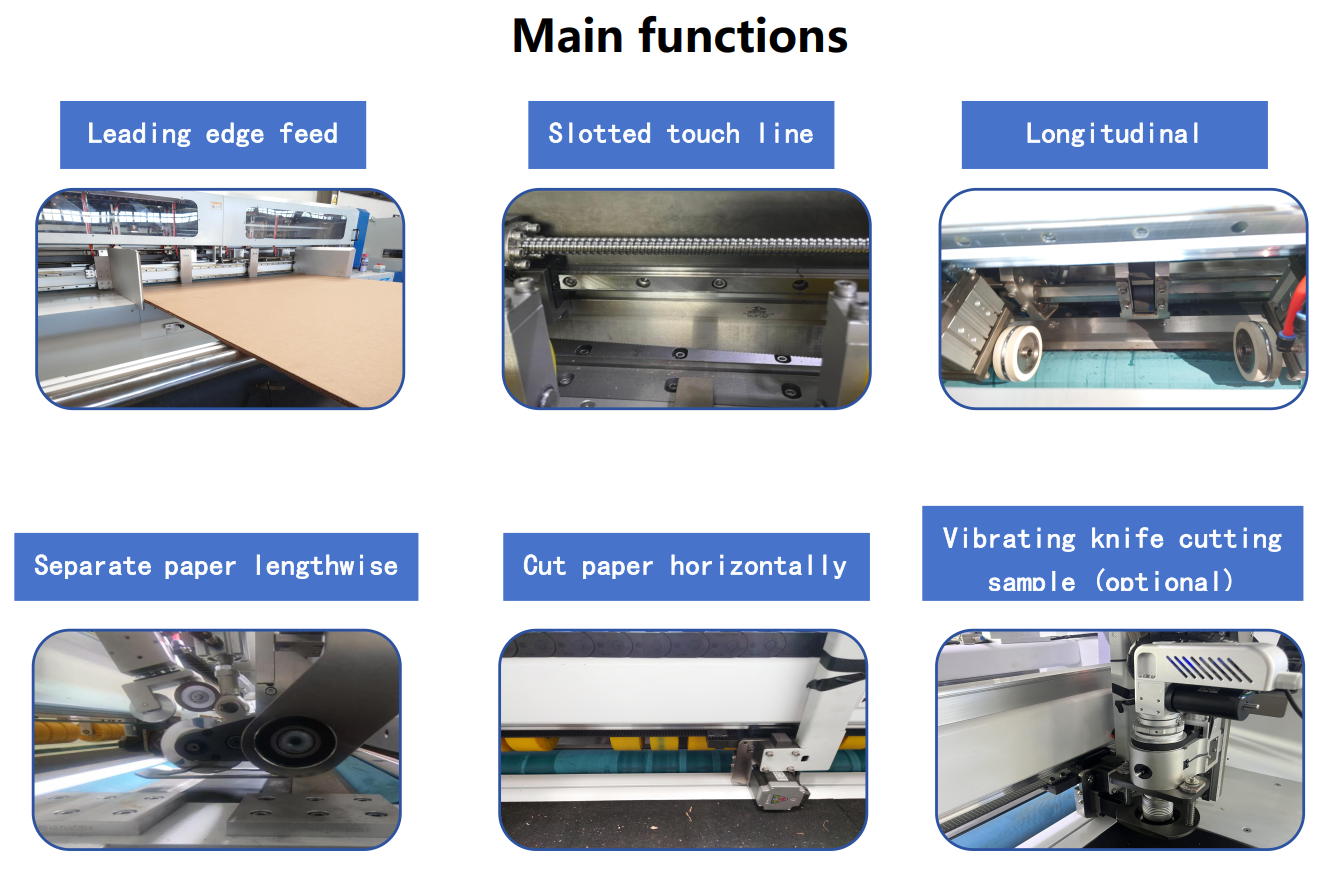

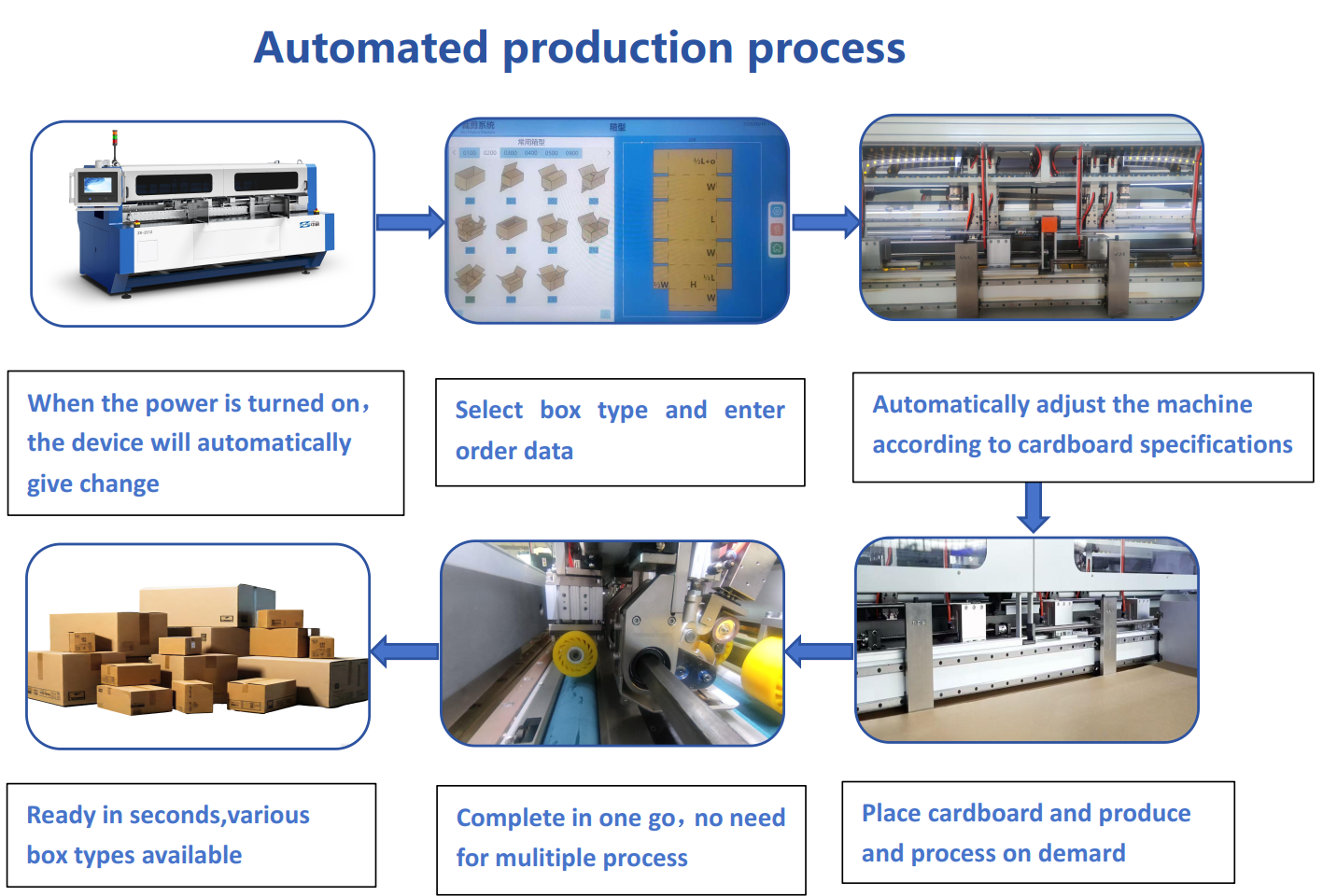

This machine uses a servo control system, programmable motion controller system, and human-machine interface. Achieve digital adjustment methods and parameterized function settings, enabling intelligent operation functions. Equipped with a built-in box warehouse of over 100 types of carton templates, operation is simpler and faster, enabling rapid specification changes in 1-6 seconds, saving time and effort. It completes multiple processes in one go—including paper feeding, grooving, punching, line contact, slitting, line pressing, and trimming—making it a multi-purpose machine and simplifying the production process. The compact machine structure reduces footprint and saves space, making it suitable for producing multi-specification, small-batch loose cartons.
1. The slitting knife has a sharpening function.
2. Special cutting with optional vibrating blade.

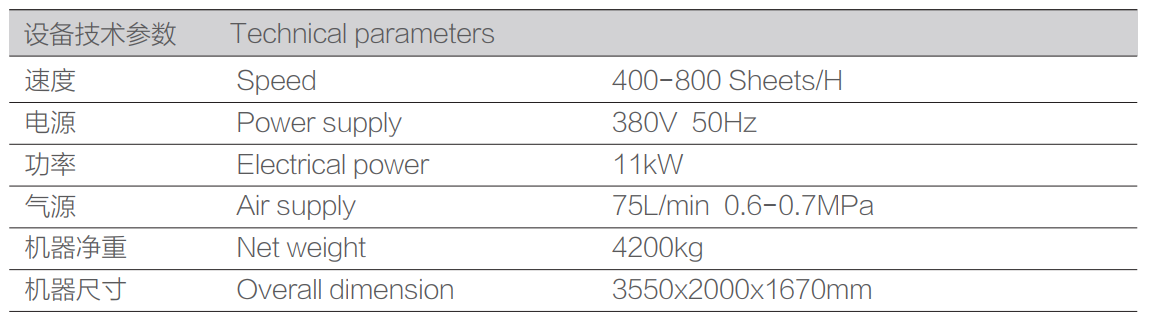

3. Several factors affecting machine operating speed: raw materials, size, and structural type.
4. Our company does not provide air compressors.
5. Due to continuous innovation in product design, the above data is for reference only; Changes are subject to change without prior notice.
