ZK-6421 Intelligent Rigid Box Making Machine
The ZK-6421 machine features a servo control system, programmable motion controller, high-pixel vision, robot positioning system, and intelligent human-machine interface system, enabling intelligent operation, digital adjustment, and parametric settings. By automatically adjusting the box height and using servo linear guide rails, it ensures high-precision positioning, stable operation, and smooth movement, while simplifying specification changes. The machine integrates processes such as paper feeding, gluing, corner application, edge banding, full-ear folding, and forming and setting.
Suitable for producing high-end hard boxes, such as electronics, phone cases, jewelry boxes, cosmetic boxes, watch boxes, gift boxes, etc.
1. Fully automated process – automatic paper mounting, grayboard positioning, and box forming.
2. High-precision visual positioning – equipped with a robotic gripping system, with a positioning error of only ±0.05mm.
3. Servo Motion Control – An intelligent system that enables digital adjustment and parametric settings to ensure smooth operation.
4. Automatic box lifting and alignment device – ensures smooth and precise box forming.
5. 24-hour glue preheating control – maintains optimal glue temperature to ensure consistent quality.
6. Automatic glue viscosity control (optional) – Automatically adjusts glue viscosity to ensure excellent bonding performance.
7. Automatic box height adjustment function – Automatically adjusts according to different box sizes to improve production efficiency.
8. Built-in sensor fault diagnosis – real-time monitoring and rapid fault detection.
1. If the box width is less than 200mm, smaller accessories must be replaced.

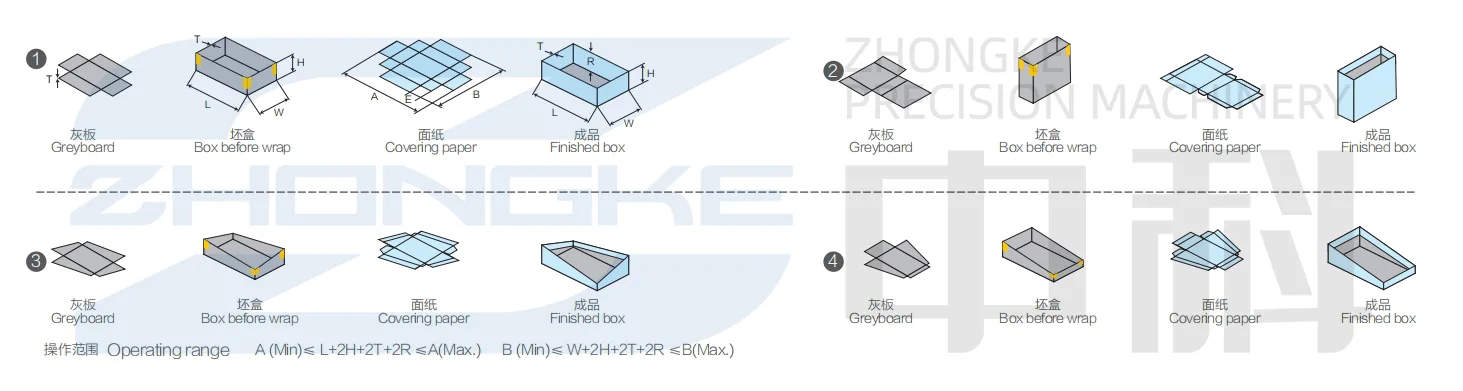

2. The box size specification is limited by the size of the tissue paper.
3. Our company does not provide air compressors.
4. Several factors affecting machine speed: raw materials, glue, and operator proficiency.
5. Due to continuous innovation in product design, the above data is for reference only; Changes are subject to change without prior notice.
